Simple BGP/RIP/OSPF/ISIS/BABEL with FRRouting

This Labs is done with BSDRP under qemu and it explains how to use BSDRP using FRRouting (Quagga fork).

Presentation

Network diagram

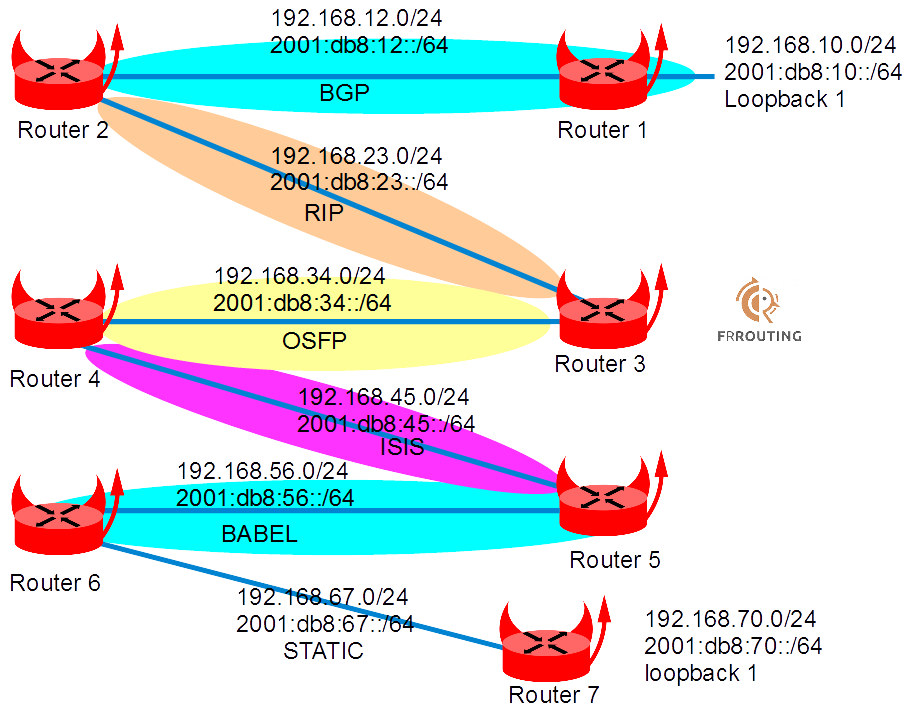

Here is the logical and physical view:

Setting-up the lab

Downloading BSD Router Project images

Download BSDRP serial image (prevent to have to use an X display) on Sourceforge.

Download Lab scripts

More information on these BSDRP lab scripts available on How to build a BSDRP router lab.

Routers configuration

VM mode: 7 VMs

All these routers can be configured with labconfig tool (use it only on a lab, because it will replace your current running configuration):

Start the lab with 7 routers, here is an example with VirtualBox:

./BSDRP-lab-vbox.sh -i BSDRP-1.97-full-amd64-serial.img.xz -n 7

Then on each:

labconfig frr_vm[VM-NUMBER]

Jail mode: 1 VM running 7 jails

Or just using one router:

./BSDRP-lab-vbox.sh -i BSDRP-1.97-full-amd64-serial.img.xz -n 1

Then you can use the jail/vnet version with command:

labconfig frr_jails

Router 1

sysrc hostname=router1 \
  cloned_interfaces=lo1 \
  ipsec_enable=YES \
  ipsec_file="/etc/ipsec.conf" \
  frr_vtysh_boot=YES \
  frr_enable=yes
cat <<EOF > /etc/ipsec.conf
flush ;
add 192.168.12.1 192.168.12.2 tcp 0x1000 -A tcp-md5 "abigpassword" ;
add 192.168.12.2 192.168.12.1 tcp 0x1001 -A tcp-md5 "abigpassword" ;
add -6 2001:db8:12::1 2001:db8:12::2 tcp 0x1002 -A tcp-md5 "abigpassword" ;
add -6 2001:db8:12::2 2001:db8:12::1 tcp 0x1003 -A tcp-md5 "abigpassword" ;
EOF

cat > /usr/local/etc/frr/frr.conf <<EOF
log syslog
!
interface lo1
 ip address 192.168.10.1/24
 ipv6 address 2001:db8:10::1/64
!
interface vtnet0
 ip address 192.168.12.1/24
 ipv6 address 2001:db8:12::1/64
!
router bgp 12
 bgp router-id 192.168.10.1
 neighbor 192.168.12.2 remote-as 12
 neighbor 192.168.12.2 bfd
 neighbor 192.168.12.2 password abigpassword
 neighbor 2001:db8:12::2 remote-as 12
 neighbor 2001:db8:12::2 bfd
 neighbor 2001:db8:12::2 password abigpassword
 !
 address-family ipv4 unicast
  network 192.168.10.0/24
  neighbor 192.168.12.2 soft-reconfiguration inbound
  no neighbor 2001:db8:12::2 activate
 exit-address-family
 !
 address-family ipv6 unicast
  network 2001:db8:10::/64
  neighbor 2001:db8:12::2 activate
  neighbor 2001:db8:12::2 soft-reconfiguration inbound
 exit-address-family
!
bfd
 peer 2001:db8:12::2 local-address 2001:db8:12::1
  no shutdown
 !
 peer 192.168.12.2
  no shutdown
 !
!
EOF
hostname router1
service netif restart
service ipsec start
service frr start
config save

Router 2

sysrc hostname=router2
sysrc ipsec_enable=YES
sysrc ipsec_file="/etc/ipsec.conf"
sysrc frr_enable=YES
cat <<EOF > /etc/ipsec.conf
flush ;
add 192.168.12.1 192.168.12.2 tcp 0x1000 -A tcp-md5 "abigpassword" ;
add 192.168.12.2 192.168.12.1 tcp 0x1001 -A tcp-md5 "abigpassword" ;
add -6 2001:db8:12::1 2001:db8:12::2 tcp 0x1002 -A tcp-md5 "abigpassword" ;
add -6 2001:db8:12::2 2001:db8:12::1 tcp 0x1003 -A tcp-md5 "abigpassword" ;
EOF
cat > /usr/local/etc/frr/frr.conf <<EOF
log syslog
!
key chain rippass
 key 1
  key-string rippassword
 key 1
  key-string rippassword
!
interface vtnet0
 ip address 192.168.12.2/24
 ipv6 address 2001:db8:12::2/64
!
interface vtnet1
 ip address 192.168.23.2/24
 ip rip authentication key-chain rippass
 ip rip authentication mode md5
 ipv6 address 2001:db8:23::2/64
!
router rip
 network vtnet1
 redistribute bgp
 redistribute connected
 version 2
!
router ripng
 network vtnet1
 redistribute bgp
 redistribute connected
!
router bgp 12
 bgp router-id 192.168.10.2
 neighbor 192.168.12.1 remote-as 12
 neighbor 192.168.12.1 bfd
 neighbor 192.168.12.1 password abigpassword
 neighbor 2001:db8:12::1 remote-as 12
 neighbor 2001:db8:12::1 bfd
 neighbor 2001:db8:12::1 password abigpassword
 !
 address-family ipv4 unicast
  network 192.168.12.0/24
  redistribute rip
  neighbor 192.168.12.1 next-hop-self
  neighbor 192.168.12.1 soft-reconfiguration inbound
  no neighbor 2001:db8:12::1 activate
 exit-address-family
 !
 address-family ipv6 unicast
  network 2001:db8:12::/64
  redistribute ripng
  neighbor 2001:db8:12::1 activate
  neighbor 2001:db8:12::1 soft-reconfiguration inbound
 exit-address-family
!
bfd
 peer 192.168.12.1
  no shutdown
 !
 peer 2001:db8:12::1 local-address 2001:db8:12::2
  no shutdown
 !
!
EOF

hostname router2
service ipsec start
service frr start
config save

Router 3

sysrc hostname=router3
sysrc frr_enable=YES
cat > /usr/local/etc/frr/frr.conf <<EOF
log syslog
!
key chain rippass
 key 1
  key-string rippassword
 key 1
  key-string rippassword
!
interface vtnet1
 ip address 192.168.23.3/24
 ip rip authentication key-chain rippass
 ip rip authentication mode md5
 ipv6 address 2001:db8:23::3/64
!
interface vtnet2
 ip address 192.168.34.3/24
 ip ospf bfd
 ip ospf message-digest-key 1 md5 superpass
 ipv6 address 2001:db8:34::3/64
 ipv6 ospf6 bfd
!
router rip
 network vtnet1
 redistribute connected
 redistribute ospf
 version 2
!
router ripng
 network vtnet1
 redistribute connected
 redistribute ospf6
!
router ospf
 ospf router-id 3.3.3.3
 redistribute connected
 redistribute rip
 network 192.168.34.0/24 area 0.0.0.0
 area 0.0.0.0 authentication message-digest
!
router ospf6
 redistribute connected
 redistribute ripng
 interface vtnet2 area 0.0.0.0
!
bfd
 peer 2001:db8:34::4 local-address 2001:db8:34::3
  no shutdown
 !
 peer 192.168.34.4
  no shutdown
 !
!
EOF

hostname router3
service frr start
config save

Router 4

sysrc hostname=router4
sysrc frr_enable=YES
cat > /usr/local/etc/frr/frr.conf <<EOF
log syslog
!
interface vtnet2
 ip address 192.168.34.4/24
 ip ospf bfd
 ip ospf message-digest-key 1 md5 superpass
 ipv6 address 2001:db8:34::4/64
 ipv6 ospf6 bfd
!
interface vtnet3
 ip address 192.168.45.4/24
 ip router isis BSDRP
 ipv6 address 2001:db8:45::4/64
 ipv6 router isis BSDRP
 isis circuit-type level-2-only
!
router ospf
 ospf router-id 4.4.4.4
 redistribute connected
 redistribute isis
 network 192.168.34.0/24 area 0.0.0.0
 area 0.0.0.0 authentication message-digest
!
router ospf6
 redistribute connected
 redistribute isis
 interface vtnet2 area 0.0.0.0
!
router isis BSDRP
 is-type level-1-2
 net 49.0000.0000.0004.00
 redistribute ipv4 ospf level-2
 redistribute ipv4 connected level-2
 redistribute ipv6 ospf6 level-2
 redistribute ipv6 connected level-2
!
bfd
 peer 2001:db8:34::3 local-address 2001:db8:34::4
  no shutdown
 !
 peer 192.168.34.3
  no shutdown
 !
!
EOF

hostname router4
service frr start
config save

Router 5

sysrc hostname=router5
sysrc frr_enable=YES
cat > /usr/local/etc/frr/frr.conf <<EOF
log syslog
!
interface vtnet3
 ip address 192.168.45.5/24
 ip router isis BSDRP
 ipv6 address 2001:db8:45::5/64
 ipv6 router isis BSDRP
 isis circuit-type level-2-only
!
interface vtnet4
 ip address 192.168.56.5/24
 ip router isis BSDRP
 ipv6 address 2001:db8:56::5/64
 ipv6 router isis BSDRP
 isis circuit-type level-2-only
 isis passive
!
router babel
 network vtnet3
 network vtnet4
 redistribute ipv4 isis
 redistribute ipv6 isis
!
router isis BSDRP
 is-type level-1-2
 net 49.0000.0000.0005.00
 redistribute ipv4 babel level-2
 redistribute ipv6 babel level-2
!
EOF
hostname router5
service netif restart
service frr start
config save

Router 6

sysrc hostname=router6
sysrc frr_enable=YES
cat > /usr/local/etc/frr/frr.conf <<EOF
log syslog
!
ip route 192.168.70.0/24 192.168.67.7
ipv6 route 2001:db8:70::/64 2001:db8:67::7
!
interface vtnet4
 ip address 192.168.56.6/24
 ipv6 address 2001:db8:56::6/64
!
interface vtnet5
 ip address 192.168.67.6/24
 ipv6 address 2001:db8:67::6/64
!
router babel
 network vtnet4
 redistribute ipv4 connected
 redistribute ipv4 static
 redistribute ipv6 connected
 redistribute ipv6 static
!
EOF
hostname router6
service netif restart
service frr start
config save

Router 7

sysrc hostname=router7
sysrc cloned_interfaces=lo1
sysrc frr_enable=YES
cat > /usr/local/etc/frr/frr.conf <<EOF
log syslog
!
ip route 0.0.0.0/0 192.168.67.6
ipv6 route ::/0 2001:db8:67::6
!
interface lo1
 ip address 192.168.70.7/24
 ipv6 address 2001:db8:70::7/64
!
interface vtnet5
 ip address 192.168.67.7/24
 ipv6 address 2001:db8:67::7/64
!
EOF
hostname router7
service netif restart
service frr start
config save

Final testing

Ping router7 loopback from router1 loopback:

[root@router1]~# ping -c 4 -S 192.168.10.1 192.168.70.7
PING 192.168.70.7 (192.168.70.7) from 192.168.10.1: 56 data bytes
64 bytes from 192.168.70.7: icmp_seq=0 ttl=59 time=0.580 ms
64 bytes from 192.168.70.7: icmp_seq=1 ttl=59 time=0.559 ms
64 bytes from 192.168.70.7: icmp_seq=2 ttl=59 time=0.542 ms
64 bytes from 192.168.70.7: icmp_seq=3 ttl=59 time=0.541 ms

--- 192.168.70.7 ping statistics ---
4 packets transmitted, 4 packets received, 0.0% packet loss
round-trip min/avg/max/stddev = 0.541/0.555/0.580/0.016 ms

[root@router1]~# ping -c 4 -S 2001:db8:10::1 2001:db8:70::7
PING6(56=40+8+8 bytes) 2001:db8:10::1 --> 2001:db8:70::7
16 bytes from 2001:db8:70::7, icmp_seq=0 hlim=59 time=0.607 ms
16 bytes from 2001:db8:70::7, icmp_seq=1 hlim=59 time=0.570 ms
16 bytes from 2001:db8:70::7, icmp_seq=2 hlim=59 time=0.526 ms
16 bytes from 2001:db8:70::7, icmp_seq=3 hlim=59 time=0.555 ms

--- 2001:db8:70::7 ping6 statistics ---
4 packets transmitted, 4 packets received, 0.0% packet loss
round-trip min/avg/max/std-dev = 0.526/0.565/0.607/0.029 ms

Don’t forget to “force” the source IP address to use the loopback, otherwise router1 will use the output NIC IP address as source.
